Single frequency high-precision attitude measurement and orientation module

EMA-AT300 is a low-cost, high-performance, miniaturized directional high-precision board that combines satellite navigation and MEMS sensors. It integrates two independent GNSS receivers and a high-precision positioning and orientation processor, and simultaneously receives two BDS (B1I) and GPS (L1) satellite signals from dual antennas. Using carrier phase differential positioning technology, it achieves real-time high-precision, high stability, and high reliability orientation measurement.

规格型号：

model	function	interface	plan
ATGM33XX-5AXX	Measurement value output module	UART ， Measurement value output	External computing solution
AT300-5A37	Static multi-mode attitude measurement and orientation module	UART, Angle output	Internal calculation scheme
AT310-5A37	Dynamic multi-mode attitude measurement and orientation module	UART, Angle output	Internal calculation scheme

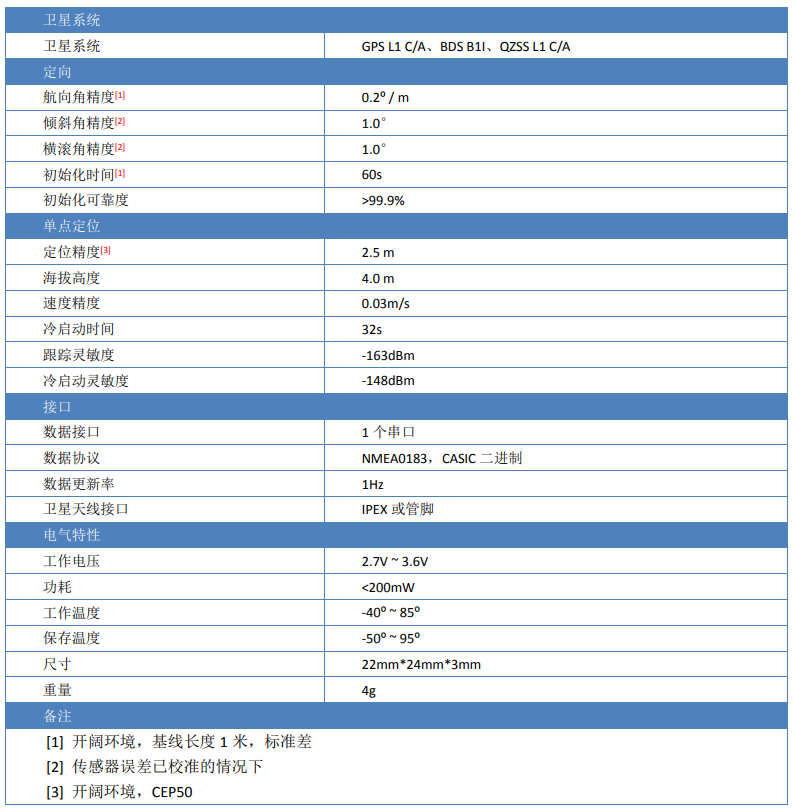

performance metrics：

1665920542117499

Product performance：

receiver	64 channels	time precision	20ns
	BDS B1	Speed accuracy	0.03m/s
	GPSL1	Initialization time	60s (open environment)
	GLONASS L1	capture time	Cold start for 30 seconds
refresh rate	Orientation ≤ 10Hz		Hot start for 1 second
	Carrier phase ≤ 10Hz		Capture again for 1 second
Single point accuracy	2.5 m (CEP50%)	sensitivity	Tracking -163dBm
Directional accuracy	0.2°/m		Cold start -148dBm
measurement accuracy	Pseudo range 10cm	power consumption	60mA@3.3V
	Carrier phase 1mm
